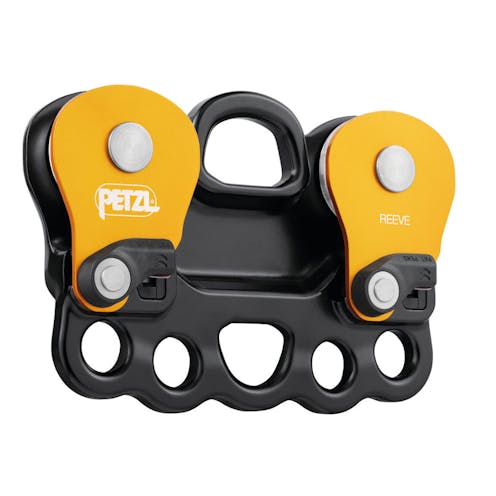

Petzl Reeve Carriage Pulley
Carriage pulley for rescue on a tensioned highline
Combining two pulleys and a rigging plate, the REEVE carriage pulley is an integrated solution designed to simplify setting up rescue systems on tensioned highlines. It’s compact design limits the number of connectors and the height of the system. Two large-diameter sheaves mounted on sealed ball bearings provide excellent efficiency when moving. Multiple connection holes to directly attach ropes, slings, or carabiners, allowing for better organization.
Fast Delivery
We deliver to all addresses across the United Kingdom. Most products can be delivered on either a 1-2 working day or 3-5 working day delivery service via Royal Mail or APC.
Non-conveyable and oversized products such as Paddles & Kayaks incur larger delivery charges due to their awkard shape and involve some restrictions on postcodes outside of England.
For oversized parcels to postcodes in Ireland & Scotland, please consider these additional costs, or alternatively, email in before purchasing as we'll be able to provide a tailored quote for your delivery service.
For more information, please see our deliveries page.
Description
Petzl Reeve Carriage Pulley
- An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the Reeve pulley limits the number of connectors and the height of the system, thanks to its compact design.
- Operations and efficiency are optimized: - Triple-action opening of moving side plates, possible even with gloves - Red indicators provide a visual warning when the side plates are not correctly locked
- Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency - Possible to rig the system before installing it on the main line
- Multiple configurations and connections are possible: - System can be made redundant by placing two Reeve pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance - Pulley can be used in a haul system - Hole design allows ropes or slings to be threaded for direct connection - 19 mm holes allow locking sleeves of most carabiners to pass through - The odd number of attachment holes enables the system to be centered and balanced - Up to three people can be connected at the same time
Specifications
- Weight: 650 g
- Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
- Material(s): Aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: Sealed Ball Bearings
- Sheave diameter: 38 mm
- Working Load Limit: 4 x 2 kN = 8 kN
- Breaking strength: 36 kN
- Efficiency: 95 %
Specification
Industry Served | Rope Access |
|---|---|
Device Type | Rigging Trolley |
Colour | Yellow Black |
Product category | Rigging Plates, Pulleys / Swivels, |
