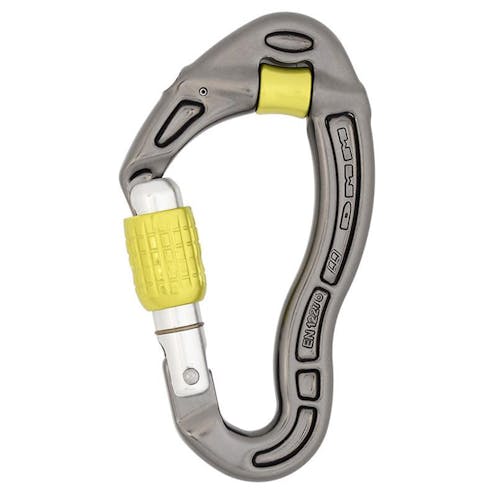

DMM Revolver Screw Lock Carabiner
The DMM Revolver Screw Lock Carabiner features an integrated pulley wheel allows ropes to run more efficiently through the carabiner. Used at changes of direction on a route, it helps reduce rope drag.
Fast Delivery
We deliver to all addresses across the United Kingdom. Most products can be delivered on either a 1-2 working day or 3-5 working day delivery service via Royal Mail or APC.
Non-conveyable and oversized products such as Paddles & Kayaks incur larger delivery charges due to their awkard shape and involve some restrictions on postcodes outside of England.
For oversized parcels to postcodes in Ireland & Scotland, please consider these additional costs, or alternatively, email in before purchasing as we'll be able to provide a tailored quote for your delivery service.
For more information, please see our deliveries page.
Description
DMM Revolver Screw Lock Carabiner
The Revolver is also highly useful for creating lightweight hauling systems. If you need to haul kit, a partner, or perform crevasse rescue, the pulley wheel increases the efficiency and converting more of your energy into movement. A locking gate gives the Revolver extra security.- Keylock nose creates a clean internal profile that won't catch on gear, bolts or slings, giving easier clipping and removal from systems.
- I-Beam construction for optimum strength to weight ratio. This is achieved through hot forging, a process which allows metal to be made into complex shapes that improve functionality.
- The Revolver's pulley wheel reduces friction and increases the efficiency of ropes running over it. This reduces rope drag on complex pitches, and rope wear when used as an anchor for top roping.
- The Revolver can also be used to create a mechanical advantage in a lightweight personal hauling system, making it indispensable as part of a climber's personal rescue kit. The pulley wheel is functional with loads up to 11kN.
Specifications
- Materials: aluminium
- Weight: 63g
- Dimensions: 60 x 109mm
- MBS (major axis): 24kN
- MBS (minor axis): 8kN
- MBS (gate open): 8kN
- Gate open: 16mm
- Certification: EN362:2004 B, EN12275:2013 B, UIAA121:2009
Specification
Activity | Climbing, Trad Climbing, |
|---|---|
Industry Served | Mountain Rescue, Activity Centre, |
Locking System | Screw Lock |
Gate Type | Solidgate |
Colour | Lime Grey Matt Grey |
Gate Opening | 16mm |
Material | Aluminium |
Product category | Carabiners, Connectors / Carabiners, Stunt Rigging - Connectors / Carabiners, |
Strength Rating (kN) | 24kN |
