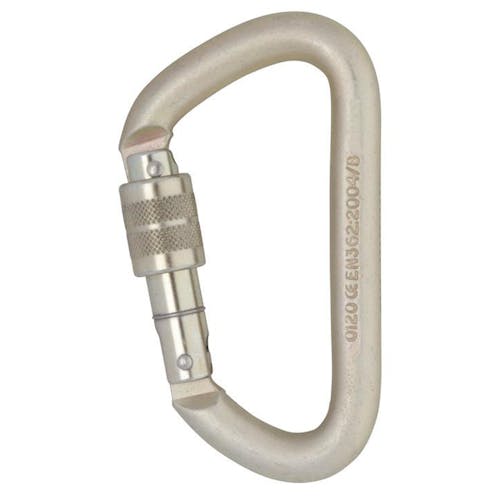

DMM Steel Offset D Screw Lock Carabiner 12mm
An Offset D connector takes the spinal loading strength of a D-shaped back but extends the basket at one end to maximize gate opening and overall size without compromising ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in their systems.
Fast Delivery
We deliver to all addresses across the United Kingdom. Most products can be delivered on either a 1-2 working day or 3-5 working day delivery service via Royal Mail or APC.
Non-conveyable and oversized products such as Paddles & Kayaks incur larger delivery charges due to their awkard shape and involve some restrictions on postcodes outside of England.
For oversized parcels to postcodes in Ireland & Scotland, please consider these additional costs, or alternatively, email in before purchasing as we'll be able to provide a tailored quote for your delivery service.
For more information, please see our deliveries page.
Description
- Offset D for ergonomics
- The Offset D connector shape takes the optimal loading of a D-shaped connector but with an increased internal volume at one end - the basket. This adds to the positivity in the hand, especially when wearing gloves.
- Cold forged
Specifications
- Materials: Steel
- MBS( Major Axis): 45kN
- MBS (Minor Axis): 12kN
- MBS (Gate Open): 12kN
- Gate Opening: 18mm
- Weight: 232g
- Certifications: EN 362:2004 B/T, EN12275:2013 B
Specification
Activity | Climbing |
|---|---|
Industry Served | Activity Centre |
Locking System | Screw Lock |
Gate Type | Solidgate |
Colour | Gold |
Gate Opening | 18mm |
Diameter | 12mm |
Material | Steel |
Product category | Connectors / Carabiners, Stunt Rigging - Connectors / Carabiners, |
Strength Rating (kN) | 45kN |
